Power Windows

The ignition switch must be in the ON position for the power windows to operate.

WARNING:
Make sure the opening is clear before closing a window:
Closing power windows are dangerous. A person's hands, head, or even neck could be caught by the window and result in serious injury or even death.

This warning applies especially to children.

Do not leave the key in your vehicle with children and keep them in a place where your children will not find or play with them:
Leaving children in a vehicle with the key is dangerous. This could result in someone being badly injured or even killed.

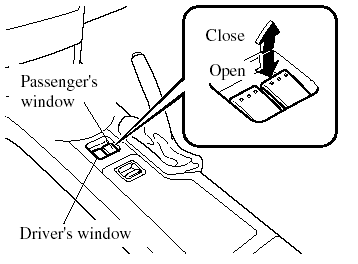

Operating the PowerWindows (Type A)

Manual opening/closing

To open the window to the desired


To open the window to the desired position, lightly hold down the switch.

To close the window to the desired position, lightly pull up the switch.

Auto-opening

To fully open the window automatically, press the switch completely down.

To stop the window partway, lightly pull up the switch and then release it.

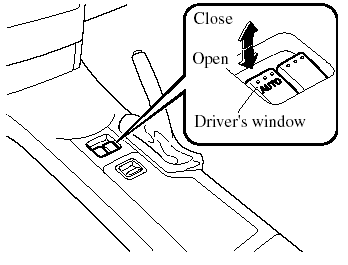

Operating the Driver's Side PowerWindow (Type B)

Manual opening/closing

To open the window to the desired


To open the window to the desired position, lightly hold down the switch.

To close the window to the desired position, lightly pull up the switch.

Auto-opening

To fully open the window automatically, press the switch completely down.

To stop the window partway, lightly pull up the switch and then release it.

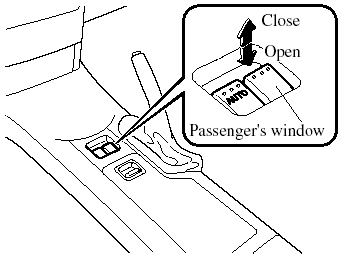

Operating the Passenger Power Window (Type B)

To open the window to the desired


To open the window to the desired position, hold down the switch.

To close the window to the desired position, pull up the switch.

Opening the PowerWindows from Outside

Both power windows can be opened from outside the vehicle after the doors are closed.

NOTE:
The power windows cannot be opened from outside the vehicle under the following condition:
- A door or the trunk lid is opened.

- The key is inserted into the ignition switch.

- (With advanced key).

The start knob is in any position except Lock.

Opening

Because nobody likes getting into a very hot car, we have introduced a way to get a head start on cooling it, even before you put your seat belts on and insert your key in the ignition. If you see the vehicle is in a secure area, you can open the both windows as you approach the vehicle to get the air moving before you even step into the hot vehicle.

WARNING:
Use the auto-window function only when you can see the vehicle and it is in a secure area:
Do not let children play with your keys. If they open the window without your knowing, the open windows are an even bigger invitation to a thief than leaving the doors unlocked.

The windows can be opened for ventilating the cabin before getting in the vehicle.

Press once, then press again within 1.5 seconds and hold the unlock button on the transmitter.

After the doors are unlocked, both windows open while the unlock button is pressed.

To stop the windows while opening, release the button.

If the operation is performed from the beginning again, the windows open.

NOTE
The unlock button does not operate unless it is pressed twice sequentially.

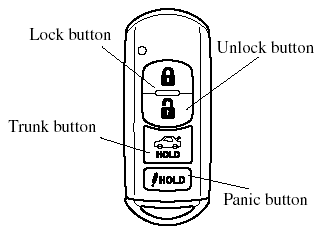

Advanced key


Advanced key

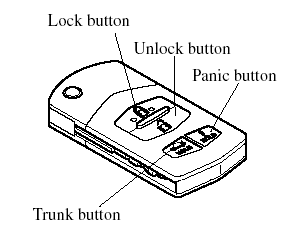

Retractable type key


Retractable type key
