Brake Fluid

Inspecting Brake Fluid Level

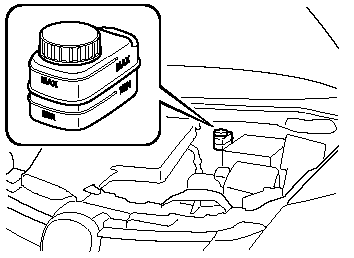

Inspect the fluid level in the reservoir


Inspect the fluid level in the reservoir regularly. It should be kept at MAX.

The level normally drops with accumulated distance, a condition associated with wear of brake linings. If it is excessively low, have the brake system inspected by an Authorized Mazda Dealer.

Adding Brake Fluid

WARNING:
Be careful not to spill brake fluid on yourself or on the engine: Spilled brake fluid is dangerous. If it gets in your eyes, they could be seriously injured. If this happens, immediately flush your eyes with water and get medical attention.

Brake fluid spilled on a hot engine could cause a fire.

If the brake fluid level is low, have the brakes inspected:
Low brake fluid levels are dangerous.

Low levels could signal brake lining wear or a brake system leak. Your brakes could fail and cause an accident.

If the fluid level is low, add fluid until it reaches MAX.

Before adding fluid, thoroughly clean the area around the cap.

CAUTION:
surfaces. If brake fluid does get on Brake fluid will damage painted
surfaces. If brake fluid does get on a painted surface, wash it off with water immediately.

system. Mixing different fluids will Using nonspecified brake fluids will damage the
system. Mixing different fluids will also damage it.

If the brake system frequently requires new fluid, consult an Authorized Mazda Dealer.
