Vehicle Information Labels

Mazda MX-5 / Mazda MX5 owners manual / Specifications / Vehicle Information Labels

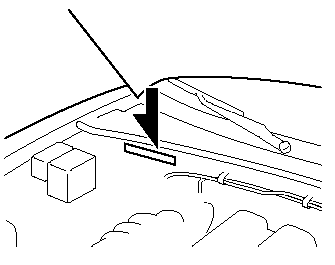

qVehicle Identification Number

The vehicle identification number legally


The vehicle identification number legally identifies your vehicle. The number is on a plate attached to the cowl panel located on the left corner of the dashboard. This plate can easily be seen through the windshield.

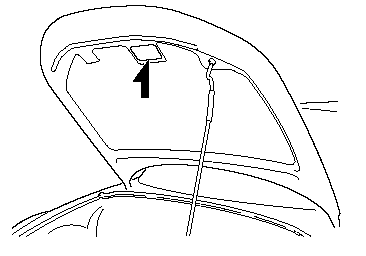

Motor Vehicle Safety Standard Label


Motor Vehicle Safety Standard Label

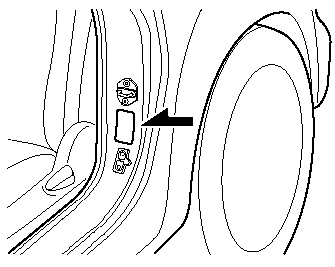

Chassis Number


Chassis Number

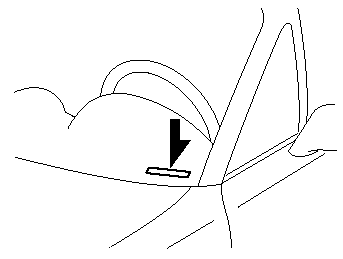

Vehicle Emission Control


Vehicle Emission Control Information Label

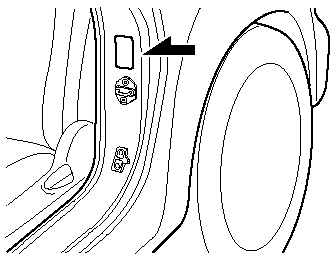

Tire Pressure Label


Tire Pressure Label

Engine Number


Engine Number
